Drum-Gloves Project

INTRODUCTION

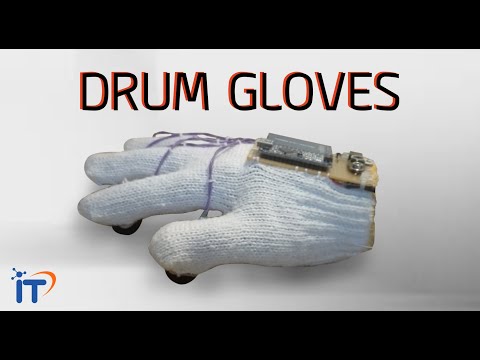

Drums’ Glove is designed for the entertainment and practiced the hand muscle sensory isolation as a designed and developed to control the glove and has a series of sounds like a team drum which include snare drum, tenor drum, bass drum, cymbals, hi-hat and kettledrum for the ordinary people who want to play a team drum that save cost and reduce space. Drums’ Glove was made from Arduino Lilypad and knowledge about drum set model. In the glove has a module that sends a signal to Arduino nano and sends analog signal.

ABOUT THIS PROJECT

This project was created for education. It was caused by me wanting to play the drums and not having enough money to buy drums to play. Therefore was born as a Drum-Gloves Project It was made for those who like to play drums. But don’t have money to buy gloves The gloves will consist of

Snare drum
Tenor drum
Bass drum
Cymbals
Hi-hat
Kettledrum

COMPONENTS AND SUPPLIES

Arduino Nano R3
Jeck 3.5 cable
REGULATOR (+5 VOLTS. 1.5 AMP IC)
Diode 1N4007 (1A 1000V Rectifier)
9V Battery Connector
Micro SD Card Module
Switch x6
Jumper wires
PCB Board
Glove

SCHEMATICS

alt text

CODE

First things first, let’s program the Arduino.

Download and install the Arduino software from http://arduino.cc.

Use the Libraries manager Click to install

  #include <SD.h>
  #include <TMRpcm.h>
  #include <SPI.h>

If you want to see the full version Click

Set pin

  int pong = 10;
  int nang = 8;
  int kang = 7;  //Set finger pin
  int koy = 6;
  int chee = 5;
  int hand = 3;

  pinMode (pong, INPUT_PULLUP);
  pinMode (chee, INPUT_PULLUP);
  pinMode (kang, INPUT_PULLUP);  //Set pinmode
  pinMode (nang, INPUT_PULLUP);
  pinMode (koy, INPUT_PULLUP);
  pinMode (hand, INPUT_PULLUP);

Set speaker librarie

  TMRpcm tmrpcm; //Call libraries TMRpcm.h
  tmrpcm.speakerPin = 9; //5,6,11 or 46 on Mega, 9 on Uno, Nano, etc

Set SD Card

  if (!SD.begin(SD_ChipSelectPin)) {  // see if the card is present and can be initialized:
    Serial.println("SD fail");
  }

Check values from switch

  v_pong = digitalRead(pong);
  v_chee = digitalRead(chee);
  v_kang = digitalRead(kang);
  v_nang = digitalRead(nang);
  v_koy = digitalRead(koy);
  v_hand = digitalRead(hand);

Example of code for pressing and playing music

  if (v_pong == 0) {
    delay(time_delay); //delay 50ms
    scan_key(); // Check button
    if ((v_pong == 0) & (v_chee == 1) & (v_kang == 1) & (v_nang == 1) & (v_koy == 1) & (v_hand == 1))  {
      tmrpcm.play("1.wav"); //Play drum (1)

If you want to see the full version Click

IMAGES

Pictures and other videos Click alt text

VIDEO

TEAM

University student

62070169	62070190	62070203	62070206
Viphavadee Sathaporn	Sakarn Bantadjun	Sukawit Bualoy	Supanida Ploykam
